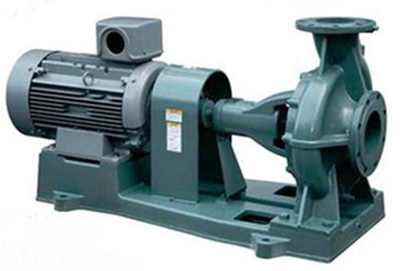

Model : SJ

Back-Pull-Out design
: This back-pull-out construction ensures easy disassembling without removing suction and discharge pipes. So the maintenance is very easy
Compact-Stability-Non overload
Conformable to JIS
: JIS standard(JISB8313) is established in Japan by referring internal standard ISO2858

            Application

: General Water Supply in dwelling houses,city buildings,etc
: Circulation of cold and/or hot water
: Industrial use
: Irrigation and sprinkler
: Fire fighting facilities

            Specification

Liquid
: Fresh Water(0-80°C)
Max Suction Pressure
: 6kgf/cm2 or(10.2kgfcm2-(shutoff head/10))
Revolution speed
: 3000 rpm

            Structure

Impeller
: Closed
Sealing
: Mechanical Seal , Gland Packing
Bearing
: Sealed Ball Bearing

            Material

Impeller
: Bronze (CAC406)
Shaft
: Stainless steel (SUS403)
Casing
: Cast iron (FC200)
Common Base
: Cast iron (FC200)
