Category >> Products Line Up / Pump / Centrifural pump ...

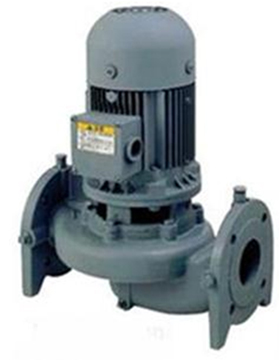

Model : LP




Features
: INLINE
As the pump of in-line type can be installed as a part of the pipe, no flooe space for installation is required
: FREE DIRECTION
The pump of this model can be installed vertically or horizontally
: EASY MAINTENANCE
The pump can be disassembled without disconnecting the pipe.it is easy to inspect and repair the pump

            Application

: Hot water supply
: In-line booster
: Circulation of cooling
: General Water Supply in dwelling houses,city buildings,etc
: Circulation of cold and/or hot water

            Specification

Liquid
: Fresh Water(0-80°C) but for Type 0-100°C
Max Suction Pressure
: 2 - 6kgf/cm2
Revolution speed
: 3000 rpm

            Structure

Impeller
: Closed
Sealing
: Mechanical Seal
Bearing
: Sealed Ball Bearing(Motor)

            Material

Impeller
: Bronze
Shaft
: Stainless steel (SUS304)
Casing
: Cast iron (FC200)
